Ceramic Fiber Modules

Ceramic fiber modules are a series of modular products made from ceramic fiber blankets, widely used in the furnace linings of various heat processing equipment. Depending on the application conditions or the type of heat treatment equipment, the appropriate grade of ceramic fiber module can be selected.

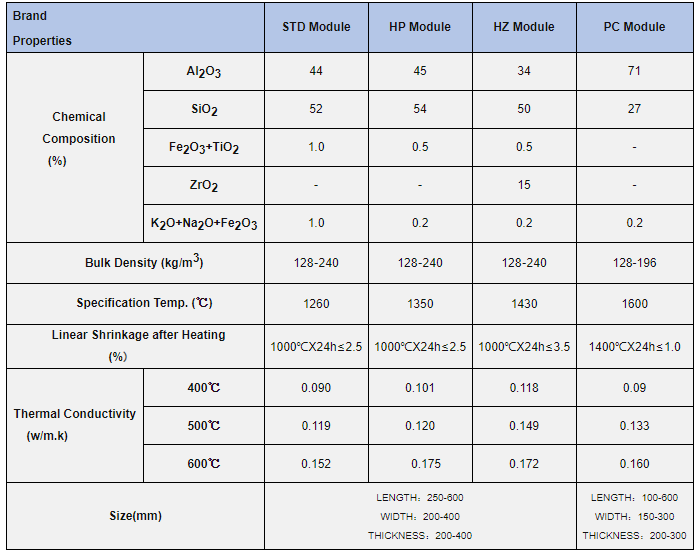

一.Physical And Chemical Indicators of Ceramic fiber modules

二.Product Features:

Various types of anchoring devices on the back of the folded modules allow for both linear and staggered installation arrangements;

The folded blankets, after being unbound, will compress against each other in different directions, eliminating gaps;

The elastic fiber blanket can withstand external mechanical forces;

The elasticity of the fiber blanket compensates for furnace shell deformation, preventing gaps between components;

Due to its light weight, it absorbs very little heat when used as an insulation material;

Low thermal conductivity results in high energy savings;

It has the ability to withstand any thermal shock;

The lining does not require drying or curing, so it can be put into use immediately after installation;

三.The anchoring system is located away from the hot surface of the components, keeping the metal anchors at a relatively low temperature. Compared with other refractory materials, ceramic fiber modules have the following characteristics:

1. Reduced firing cycle

2. Improved production efficiency

3. Low heat storage

4. Reduced fuel costs

5. Low installation costs

6. Easy repair

四.Applications

Widely used in annealing furnaces, forging furnaces, bell-type furnaces, aluminum melting furnaces, sintering furnaces, carbonization furnaces, tempering furnaces, heating furnaces, ladle (cover) insulation linings, hot-dip galvanizing annealing furnaces, ring furnaces, and various types of heat treatment furnaces; glass annealing furnaces, glass melting furnaces, high-temperature test furnaces; roller kilns, shuttle kilns, tunnel kilns, pusher kilns, and special ceramic firing kilns; cracking furnaces, conversion furnaces, hydrogen production furnaces, atmospheric and vacuum furnaces, and coking furnaces. The company has a professional industrial furnace lining design and product development center, which can provide customers with technologically advanced and economically reasonable energy-saving solutions for industrial furnace linings and pipeline insulation structure designs; a professional construction team can provide customers with construction services under various complex working conditions.
