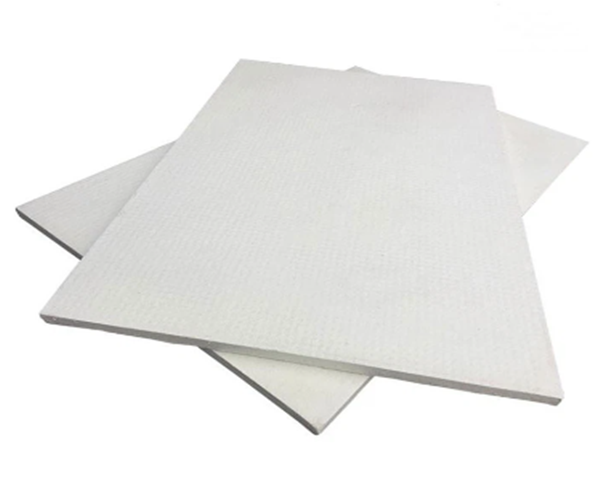

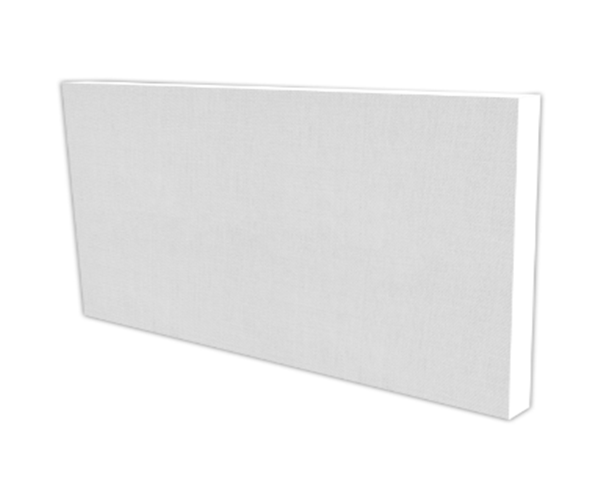

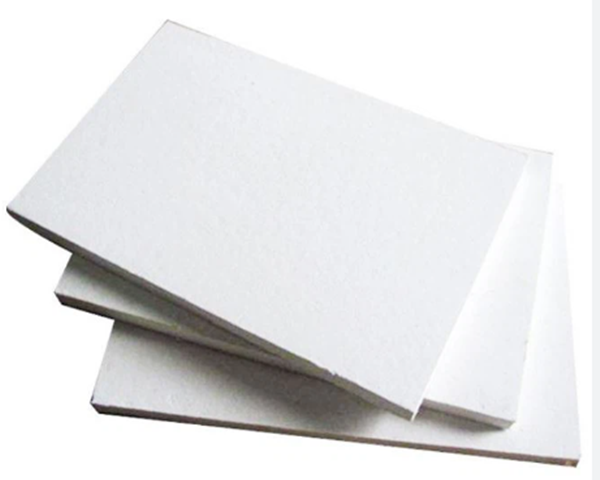

Zirconia Containing Aluminum Silicate Fiber Board

Zirconia Containing Aluminum Silicate Fiber Board is manufactured using a wet vacuum filtration and pressure molding process, with loose cotton fibers as the base material and added organic and inorganic binders. The product is hard, high-strength, erosion-resistant, and easy to process.  The refractory fiber raw materials have stable chemical properties and offer the advantages of being lightweight and providing thermal insulation. It can be directly used on the hot face of furnace linings to withstand flames and high-temperature gas flow.

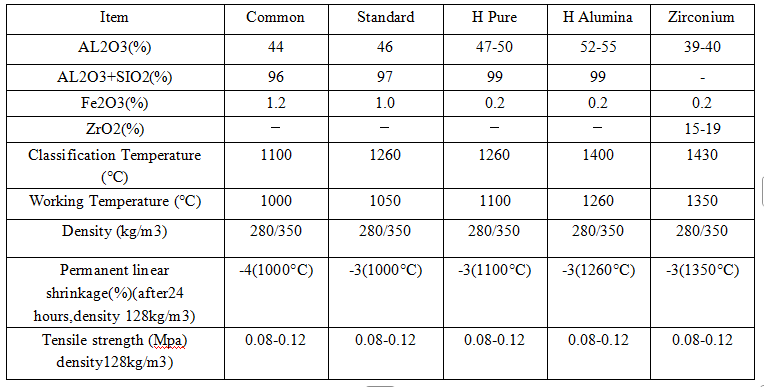

一.Physical And Chemical Indicators of Zirconia Containing Aluminum Silicate Fiber Board

二.Zirconia-containing ceramic fiber board is an inorganic non-metallic material with zirconia (ZrO₂) as the reinforcing phase. Its density is a key parameter for measuring the mass per unit volume. According to the international standard ISO 10635, the typical density range is 1.8-2.5 g/cm³, with the specific value affected by the following factors:

1. Zirconia content: The higher the proportion of zirconia, the greater the density. For example, a fiberboard with 10% zirconia has a density of approximately 2.1 g/cm³, while one with 15% zirconia can reach 2.4 g/cm³.

2. Porosity: The porous structure inside the fiberboard reduces the density; for example, a porosity of 30% can reduce the density to below 1.9 g/cm³.

3. Molding process: Dry pressing results in a product density approximately 0.2 g/cm³ higher than wet molding (Reference: "Handbook of Advanced Ceramic Materials").

三.Product Characteristics

Low heat capacity, low thermal conductivity, non-brittle material, good elasticity, wind erosion resistance, long service life, excellent thermal stability and thermal shock resistance, rigid, self-supporting board with good spalling resistance, easy to shape or cut.

四.Product Applications

Sealing material for furnace doors and furnace body expansion joints

Thermal insulation and electrical insulation material for heating devices in instruments and equipment

High-temperature sealing gaskets

Hot face material for high-temperature furnace linings

Molds for forming deep-processed products such as process glass and ceramics

Furnace lining lining for erosion-resistant areas
