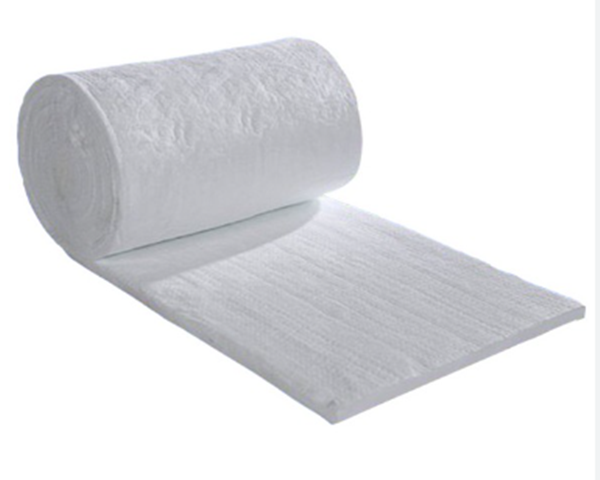

High-purity Ceramic Fiber Blankets

High-purity ceramic fiber blankets are thermal insulation and refractory materials made from aluminum silicate, formed by special long-fiber needling. This material can be used stably for extended periods at high temperatures of 1000–1250℃ without aging; it is soft, flexible, and does not expand when heated, allowing for easy cutting and bending during installation. It also possesses excellent resistance to chemical corrosion, vibration, sound insulation, and electrical insulation properties, making it suitable for insulation layers in various high-temperature equipment. The product offers excellent fire resistance and thermal insulation, along with multiple advantages such as material and fuel savings, convenient construction, reduced investment costs, reduced equipment weight, and thinner insulation layers.

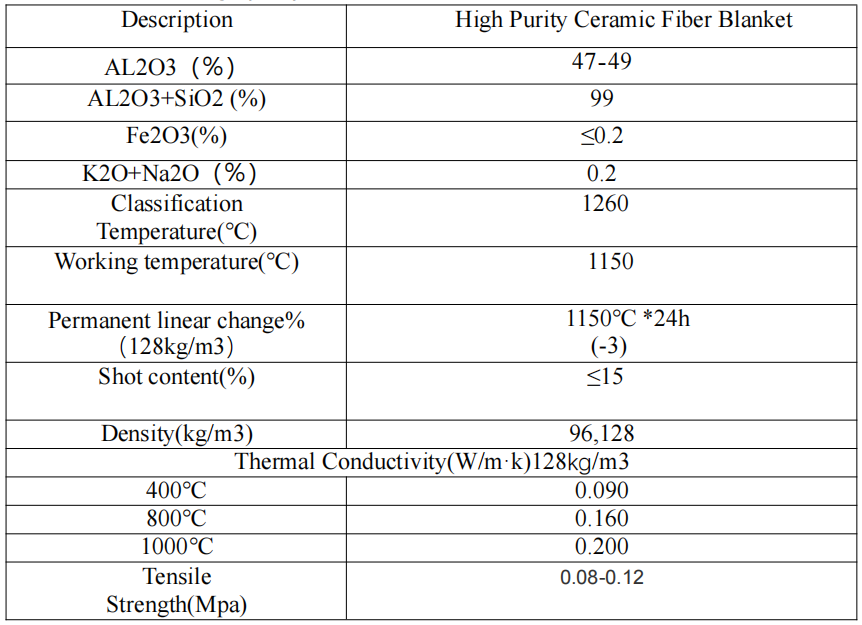

一.Physical And Chemical Indicators of High-purity ceramic fiber blankets

二. Manufacturing Process

1. Fiber Forming: Advanced processes such as resistance furnace melting and continuous blowing or spinning methods are used to produce fibers with uniform diameter and considerable length. These fibers can interweave to form a dense structure.

2. Needle Punching Treatment: Needle punching technology strengthens the bonding force between fibers, improving the overall integrity and tensile strength of the ceramic fiber blanket, effectively preventing delamination and loosening during use.

三. Physical Properties

1. Appearance: White color, flat surface, regular dimensions, and excellent appearance quality.

2. Density: High-purity products have low density; common bulk densities are 96 kg/m³ or 128 kg/m³, possessing lightweight characteristics for easy handling and installation.

3. Specifications: Thicknesses range from 10mm to 50mm in various models; length and width can be customized, with standard lengths of 3600mm and 7200mm, and standard widths of 610mm and 1220mm.

四. Thermal Properties

1. High Temperature Resistance: Classification temperature of 1260℃, long-term working temperature up to 1100℃, stable performance in high-temperature environments, suitable for thermal insulation needs of various high-temperature industrial equipment.

2. Excellent Thermal Insulation: Low thermal conductivity effectively blocks heat transfer, reduces energy loss, and improves equipment thermal efficiency.

3. Good Thermal Stability: The fiber structure is not easily deformed or shrunk at high temperatures, ensuring long-term stable operation.

4. High Tensile Strength: Supported by special processes, it has excellent tensile properties and strong fracture resistance, facilitating construction and installation.

5. Sound Absorption and Noise Reduction: The porous fiber structure has good sound absorption effects, reducing equipment operating noise.

五. Chemical Properties

1. Chemical Stability: Resistant to corrosion from acids, alkalis, and other chemical substances, exhibiting excellent performance in oxidizing and neutral atmospheres, suitable for corrosive industrial environments.

2. Green and Environmentally Friendly: No harmful substances are released during high-temperature use, posing no harm to the environment or human health, making it an environmentally friendly thermal insulation and refractory material.

六. Application Fields

1. Industrial Kilns: Used as kiln walls, kiln roofs, and kiln door linings in kilns for ceramics, glass, steel, and other industries, reducing heat loss and improving kiln thermal efficiency. 2. High-temperature equipment: Used for thermal insulation of equipment such as boilers, steam turbines, and heating furnaces in the power, petrochemical, and machinery industries.

3. Heating devices: Used as an insulation layer for heating equipment such as heat treatment furnaces, drying ovens, and reactors to maintain internal temperature and optimize heating efficiency.

4. Aerospace: Used for thermal protection of spacecraft and engine insulation, capable of withstanding extreme conditions such as high temperature and high pressure.

5. Electrical components: Used as thermal insulation and fireproof material for electrical components, improving the safety and reliability of component operation.
